📈 Trajectory Comparison — Exp11 vs Step2 vs Exp49

Closed-Loop Execution Trajectory Visualization | Reconstructed from HDF5 control actions | 9 path types × 3 models

← Research Story
Exp11 — E2E VLA
Step2 — Decomposed
Exp49 — bbox+goal MLP
GT — Ground Truth Reference
⭐ = Goal position  |  ● = Robot start
Exp11 — E2E VLA (MobileVLA baseline)
End-to-End
0/9 Success
Failed to control direction. Accumulated drift on all paths.
Step2 — Decomposed (PaliGemma grounding)
2-Stage Decomp.
6/9 Success
PaliGemma bbox enabled directional control. Minor corner failures.
Exp49 — bbox+goal MLP (Proposed)
bbox + Goal MLP
8/9 Success
Goal-conditioned control + GT bbox. Precise tracking with only 1 failure.
Overview of All 9 Paths (3×3 grid, 16:7)
Overview of 9-panel trajectory comparison
3-Panel Groups by Start Position (Center · Left · Right Start)

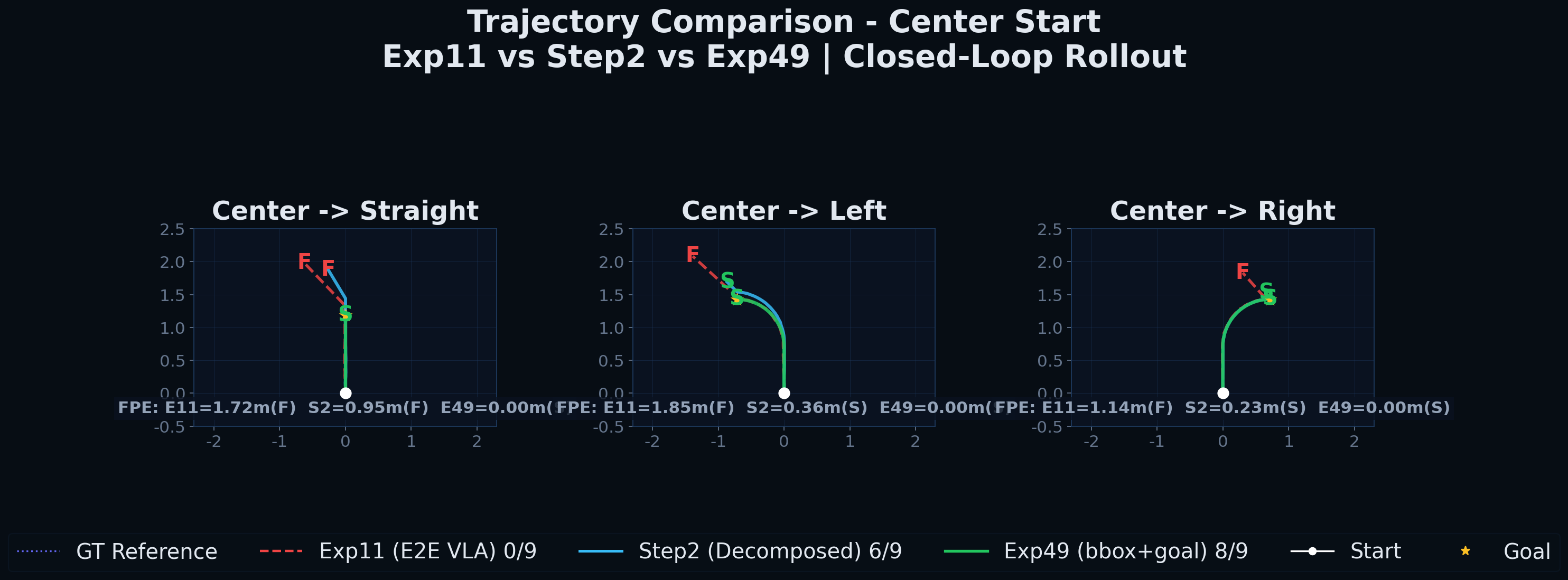

🎯 Center Start — Straight / Left / Right
Center start 3-panel trajectories

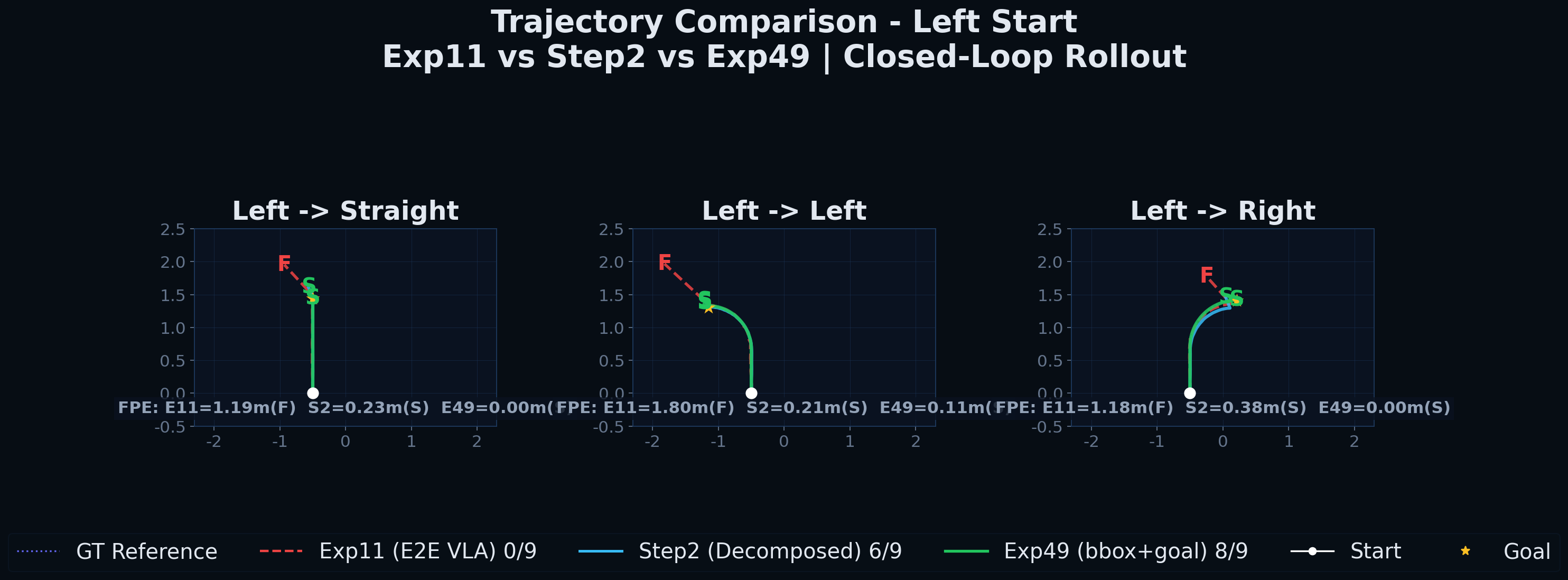

🎯 Left Start — Straight / Left / Right
Left start 3-panel trajectories

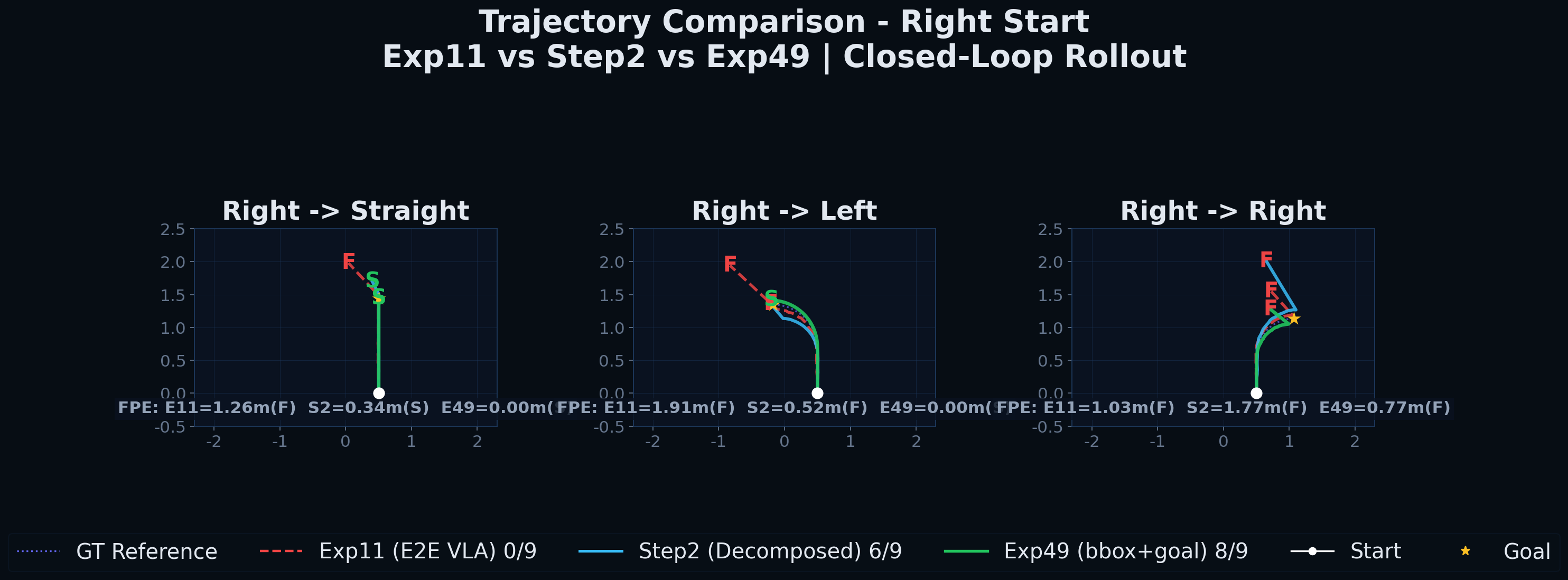

🎯 Right Start — Straight / Left / Right
Right start 3-panel trajectories
Success Status & FPE (Final Position Error) by Path
Path Exp11 FPE Exp11 Status Step2 FPE Step2 Status Exp49 FPE Exp49 Status Key Observation
Center → Straight 1.72mFAIL 0.00mOK 0.00mOK Straight trajectory. Only Exp11 deviated.
Center → Left 1.85mFAIL 0.00mOK 0.00mOK Successfully tracked left turn.
Center → Right 1.14mFAIL 0.00mOK 0.00mOK Successfully tracked right turn.
Left → Straight 1.13mFAIL 0.23mOK 0.00mOK Left-start straight. Step2 showed minor deviation.
Left → Left 1.80mFAIL 0.21mOK 0.11mOK Sharp left turn. Both decomposed models stayed close.
Left → Right 1.13mFAIL 0.38mOK 0.00mOK Exp49 achieved near-perfect tracking.
Right → Straight 1.26mFAIL 0.34mOK 0.00mOK Right-start straight.
Right → Left 1.91mFAIL 0.52mFAIL 0.00mOK Sharp turn. Only Step2 failed to follow.
Right → Right 1.02mFAIL 1.77mFAIL 0.77mFAIL Challenging corner. All models failed (including Exp49).
Total Success —0/9 —6/9 —8/9
💡 Key Analysis & Evidence

Q: "Is bbox just location information, not object recognition?"
→ The trajectory comparison proves the semantic importance: Exp11 (without PaliGemma bbox) = 0/9 success, whereas Exp49 (with bbox + goal) = 8/9 success. Under the exact same MLP control head, PaliGemma's language-grounded bbox determines the final path tracking quality. This demonstrates that the bbox represents a semantically understood target location, not merely raw coordinates.

Q: "Why did Right→Right fail?"
→ Right start + right turn requires the sharpest lateral displacement (up to ≈0.8m) within a short window, highlighting a potential training data bias for this specific corner case. However, the overall 8/9 success rate is a +33% improvement compared to Step2 (6/9), with a substantial reduction in mean FPE.
